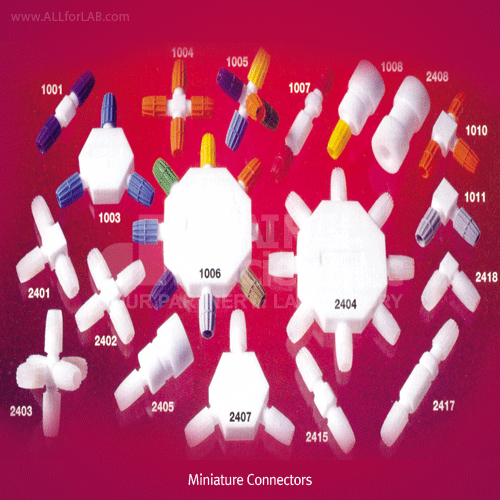

Miniature Connectors |
|
가격 : 견적가
제조사 : OMNIFIT
모델선택 : 총 (15)개의 모델이 등록되어 있습니다.
|
|
|
 |
These inert fittings provide a sample, reliable method to making a connection and can be used for all 5 tyges of connection options.
* Inert Fitting은 간단한 조작으로 여러형태의 Connection을 가능하게함
* Autoclavable at 121。C
* Viton O-ring: 1~4 mm의 Tubing의 연결을 용이하게함, Zero or Minimal Dead Volumn. Colour Coded
* PTFE Precision Cone : The flat bottom for the 1/4”-28 fitting, Leak free, self-centering connection
Standard Connectors, 1.5 mm Bore Size, for 1~4 mm O.D. Tubing, 표준 컨넥터
* PTFE body
* Viton O-rings & 1/16”PTFE cones & Coloured PP caps과 같이 공급
OM.1001 Connector, 2-way
OM.1002 Connector, 2-way
OM.1003 Connector, 3-way, Hex
OM.1010 Connector, 3-way, “T”
OM.1004 Connector, 4-way
OM.1005 Connector, 6-way
OM.1006 Connector, 8-way
OM.1007 Connector, 2-way, b/hd Mountable
OM.1011 Connector, 2-way Elbow
Small Bore Connectors, 0.8 mm Bore Size, for 1~4 mm O.D. Tubing, 소형 컨넥터
* PTFE body
* Natural Tefzel caps과 1/32”(0.8 mm) cone과 같이 공급
OM.2415 Connector, 2-Way
OM.2407 Connector, 3-way, Hex
OM.2401 Connector, 3-way, “T”
OM.2402 Connector, 4-way
OM.2403 Connector, 6-way
OM.2404 Connector, 8-way
OM.2417 Connector, 2-way, b/hd Mountable |
 |
|
|
|
