■ High-performance / All Stainless steel (SUS-430/304) models : Designed for the Durability & Consistent Quality
■“WWS-S”models, Built-in Stainless steel(SUS-304)
Prefilter Kit, interchangeable 100 mesh (150㎛㎛ ) : Remove Particles & Scale-forming impurity.
불순미세입자제거및분순물때생성방지.
■““WWS-P””models, Built-in PP(Polypropylene) 1㎛㎛ Prefilter/Cartridge Kit, interchangeable : Remove Rust, Particles & Scale-forming impurity.
불순녹및물때방지, 불순물미세입자제거.
■ All Models, Complete Set with :
(1) Stainless steel Unit Kit
(2) External Consistent-Level Device
(3) Drain Valve
(4) Prefilter Kit
(5) 2m Feeding Water Tubing (Silicone) Assembly for Connection of Water Tap ΦΦ15 or ΦΦ19 mm
(6) PP Un-equal Tapered Connector ΦΦ8,10,12 / 14,16mm-for Different Diameter Tubings
■ Auto On/Off with Water Level Sensor/Micro Level Sensor.공급수(양)의레벨의적부에따라자동 On/Off 가됨.
■ 2-Year Warranty, and PL(Product Liability) Insurance

Application & Features
* This space-saving horizontal condenser was designed for durability and consistent quality
* Energy saving features include a condenser that preheats the feedwater and a double-walled evaporator.
* A low water cutoff protects heating elements from burn-out when water supply is interrupted
* Stainless Steel Heater Built-in 0.4mm Ni/Cr. Element, Boiler, Economical Energy and Water Consumption.
* Sealing : Silicone O-ring packing.

주문 (Ordering)
With Stainless steel Prefilter, 150㎛(100 mesh), 스텐레스전처리필터부착형

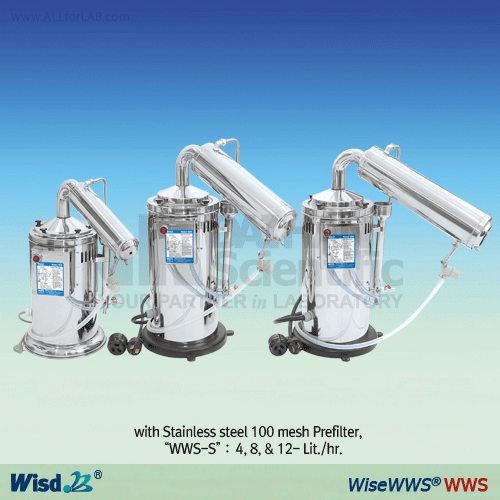

DH.WWS01004 Water Still Complete Set, built-in Stainless steel 100 mesh Prefilter, WWS-S4, 4 Lit./hr, heater 3kW
DH.WWS01008 Water Still Complete Set, built-in Stainless steel 100 mesh Prefilter, WWS-S8, 8 Lit./hr, heater 6kW
DH.WWS01012 Water Still Complete Set, built-in Stainless steel 100 mesh Prefilter, WWS-S12, 12 Lit./hr, heater 9kW

With PP 1㎛ pore Prefilter(Cartridge), PP 카트리지전처리필터부착형

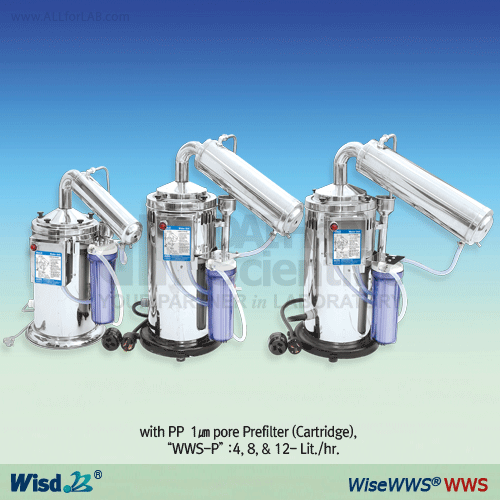

DH.WWS02004 Water Still Complete Set, built-in PP pore Prefilter, WWS-P4, 4 Lit./hr, heater 3kW
DH.WWS02008 Water Still Complete Set, built-in PP pore Prefilter, WWS-P8, 8 Lit./hr, heater 6kW
DH.WWS02012 Water Still Complete Set, built-in PP pore Prefilter, WWS-P12, 12 Lit./hr, heater 9kW

Spare or Optional Accessories for Water Stills

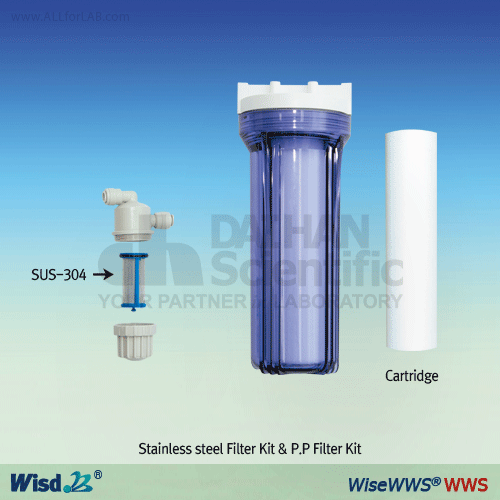

DH.WWS10101 Spare, Stainless steel 100 mesh Prefilter Kit, SF101, POM Housing Φ36×h61mm, SUS-304 Filter only Φ22×h 46mm
DH.WWS10102 Spare, PP 1㎛ pore Prefilter / Cartridge Kit, PF102, PE Housing Φ110×h300mm, PP 1㎛ Filter only Φ60×h 252mm
DH.WWS10103 Spare, PP Cartridge only, PF103,Φ(od.) 60×Φ(id.) 30×h 252mm

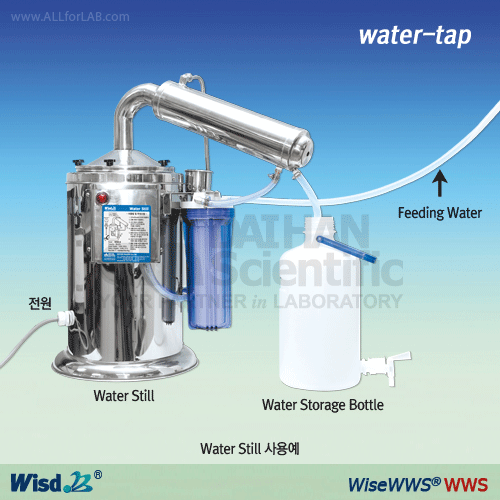

KA.1662 Optional, Water Storage Bottle, 10Lit. Φ210×h414mm, with water-tap
KA.1664 Optional, Water Storage Bottle, 25Lit. Φ279×h525mm, with water-tap
KA.1666 Optional, Water Storage Bottle, 50Lit. Φ366×h603mm, with water-tap

※ 자세한 사항은 PDF파일 참조하시기 바랍니다.
