* Completely Autoclavable
* Temperature Resistant up to 140¡É
* Can be used up to 500 rpm
* Variable Stirrer Shaft can be used
* Compatible with the proven DURAN^(R) Connection Systems ;
* Hoses with Bores from 1.6 mm to 6.0 mm can be Fitted (GL45)
* Hoses with Bores from 1.6 mm to 12.0 mm can be Fitted (GLS 80)
* Materials used PP / PTFE / PEEK / Stainless Steel
* Parts in contact with Media conform fully to FDA Requirements
* Complete Set :
(1)GL45 Stirred Reactor - ¨çDURAN^(R) GL45 Bottle (500 or 1,000ml), ¨èFolding Magnetic Stirrer
(1)GL45 Stirred Reactor - & Shaft, ¨éGL45 PP Cap with 2 x GL14 Ports &
(1)GL45 Stirred Reactor - PBT Screw Cap (Red),¨êGL14 PP Screw Cap (Blue)
(2)GLS 80 Stirred Reactor - ¨çDURAN^(R) GLS 80 Bottle (1Lit. or 2Lit.), ¨èAnchor-type
(2)GLS 80 Stirred Reactor - Magnetic Stirrer & Shaft, ¨éGLS 80 PP Cap with 2 x GL14
(2)GLS 80 Stirred Reactor - PBT Screw cap (Red) & 2 x GL18 PBT Screwcap (Red)
(2)GLS 80 Stirred Reactor - ¨ê1 GL 14 PP Screwcap(blue)
(2)GLS 80 Stirred Reactor - (Impeller-type Stirrer can be Supplied Optionally)

* Significantly Improved thorough Mixing Compared to Standard Magnetic Stirring Bar
* Ideal for the Mixing Process : Mixing Liquids, Dissolving Solids
* The Whole assembly is Autoclavable, so that it Can be Used in Biological
   Applications (Fermentation)
* The Connections Permit you to Introduce other Media into the Bottle or Remove
   Media During Mixing
* Can be Connected Extra Media Bottles or Fitted a Sterile Pressure Release

¡ØNote :
   - Instead of direct Heating, a Water or Oil Bath should be used to Ensure an
      even Heat transmission and to avoid tension in the Glass.
   - The Stirred Reactor can be Heated in a Temperature Cabinet
   - Optimum Mixing is Obtained with a Filling Volume of 300§¢ (GL45)
   - Due to Lid Design, No Probes (for Temperature Measurement) can be Used (GL45)

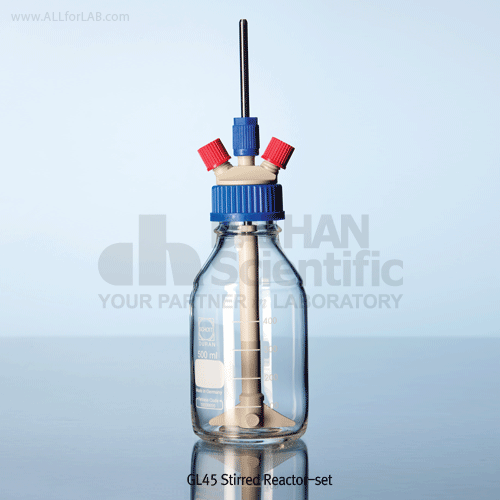

(1) GL45 Stirred Reactor-set, with Fitting Magnetic Stirrer
DU.1200395 Stirred Reactor Complete-set, GL45, 500§¢
DU.1200396 Stirred Reactor Complete-set, GL45,1,000§¢

                       Spare Accessories for GL45 Stirred Reactor
DU.1200391 Folding Magnetic Stirrer for GL45 Stirred Reactor, incl. Shaft
DU.1200391 PP/Stainless steel, including PEEK Connection
DU.1200390 Spare Screw Cap 2-ports for GL45 Stirred Reactor,
                    with GL14 Screwcap, PP, Blue

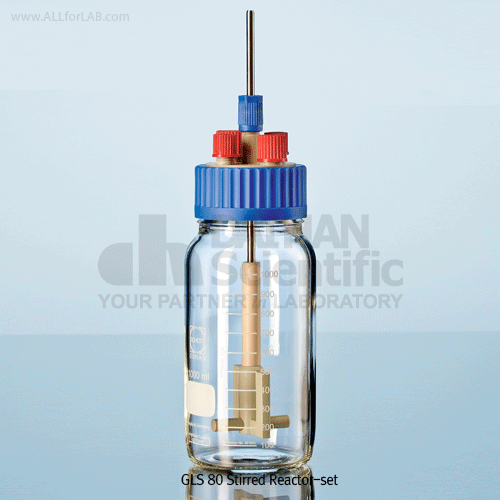

(2) GLS 80 Stirred Reactor-set with Anchor Magnetic Stirrer
DU.1200380 Stirred Reactor Complete-set, GLS 80, 1Lit.
DU.1200381 Stirred Reactor Complete-set, GLS 80, 2Lit.

                       Spare Accessories for GLS 80 Stirred Reactor
DU.1200379 Reactor Cap, GLS 80, incl. Anchor Stirrer, Shaft, Connection, Cap
DU.1200382 Impeller Stirrer, Magnetic (Option)
DU.1200383 Anchor Stirrer, Magnetic
DU.1200385 Screw Cap, PP, Blue / Grey
DU.1200386 Shaft, Stainless Steel, incl. PEEK Connection
