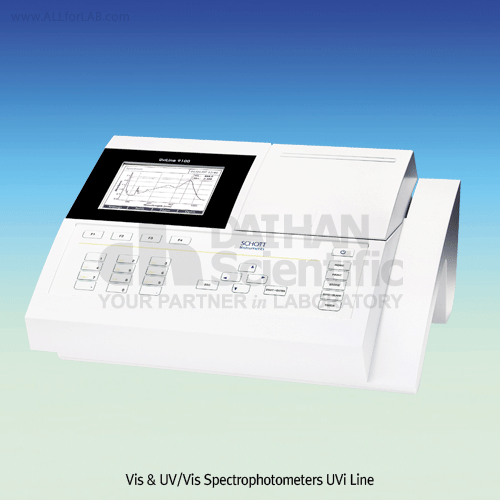

Two Complete New High-Performance Single Beam Photometer :

UviLine 9100 for measurements at VIS range from 320~1100§¬

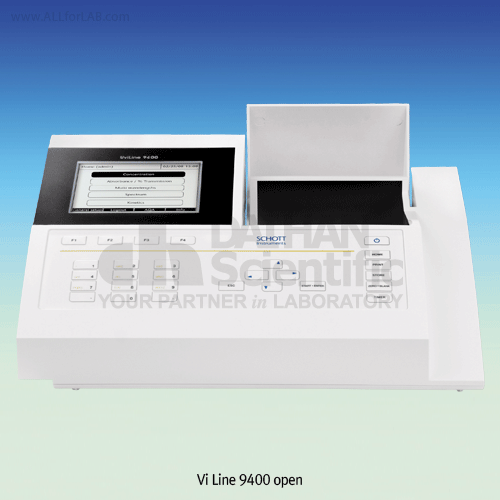

UviLine 9400 for measurements at UV-VIS-range from 190~1100§¬

* Measurement of absorbance and transmission
* Concentration measurements up to 8 standards
* Multi-wavelength
* Spektra scan with online graphic
* Kinetics
* Extensive evaluation functions

Hardware Features
* Large Backlit Graphic Display : The large display enables a clearly structured navigation and enhances
   i.e. the graphic evaluation using arrow keys and zoom function.
*Clear and well-arranged keyboard : With four function keys F1-F4 for fast and direct function triggering,
   such as settings, tools, zoom etc. Alphanumeric keys for entering the wavelengths, sample ID¡¯s and other
   parameters. Specially separated cursor section with ESC and START/ENTER keys for fast navigation. Also
   5 additional keys with direct functions such as i.e.
   print, zero ( reference), save etc.

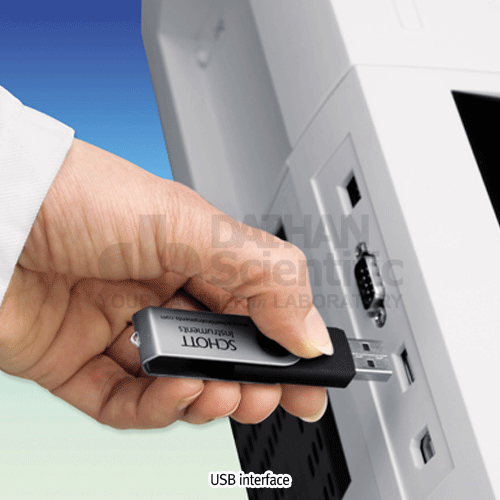

* Modern interfaces : Besides the USB slave interface (USB-B) for connecting a PC, both UviLines also
   feature a USB master interface (USB-A). This USB master interface enables the connection of various
   instruments via USB
    - USB memory sticks and USB hard disks. (bi-directional).
    - Standard printers with USB interface
    - External PC keyboard
    - A RS232 interface is also included
* Powerful optics : The UviLine comprises an excellent optical design in this range
    - 1200 lines/mm holographic, concave grating for minimal stray light
    - wide wavelength range from 190-1100 §¬
    - high optical resolution of 4 §¬
    - automatic compensation of ambient light
    - automatic wave length calibration
* Wide measuring range and extensive accessories : The wide measuring range enables the usage of cell
   holders with a length of max 100 §®. This also enables measurements with very low concentrations.

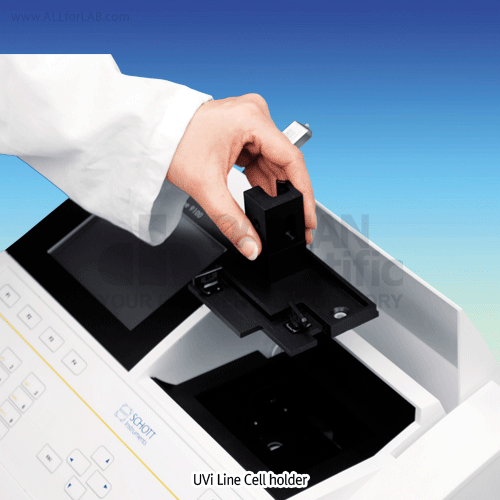

   There are 4 different cell holders/sample changers available, which can be replaced very easily :
    - single cell holder, 10 §® (is included in the scope of delivery), thermostatable
    - single cell holder 100 §®
    - single cell holder, 10 §® thermostatable (peltier)
    - automatic sample changer, 5+1

Software Features
* Standard applications : Absorption, Transmission, Concentration Measurement, Spectra, Kinetics and
   Multi Wavelength Analytics.
* Multi wavelength analytics : up to 4 absorption values with different wavelengths can be measured and
   saved. For each application you have the possibility to programme an own optimized method.
* Kinetics : Determination of the reaction time values. The kinetics measurement can be stored and in the
   following evaluated using the cursor.
* Spectrum : By using the zoom function and the cursor it is quite easy to edit the spectra.
* Additional Evaluation Functions : Min/Max Recognition, Add Spectrum and Subtract Spectrum, Derivative
   Calculation (1-3. derivative), Peak Surface Calculation, as well as multiply fixed value.

±Ô°Ý (Specification)


ÁÖ¹® (Ordering)
SG.285700100 Spectrophotometer, Single Beam, UviLine 9100
SG.285700120 Spectrophotometer, Single Beam, UviLine 9400
