원격 분광광도 시험용 석영 침적 프로브와 케이블, 현장시험, 공정관리 등에 적합

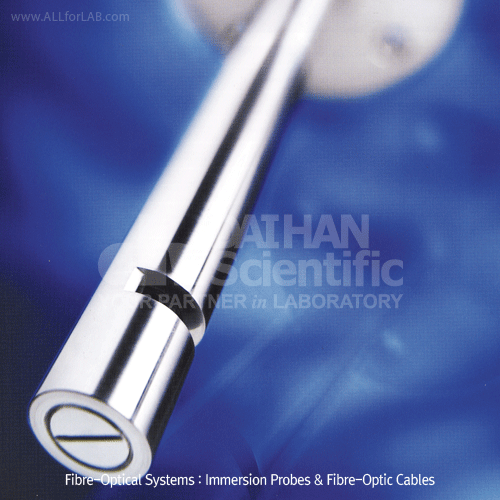

Fibre-Optical Systems : Immersion Probes & Fibre-Optic Cables |
|
가격 : 견적가
제조사 : HELLMA
모델선택 : 총 (16)개의 모델이 등록되어 있습니다.
|
|
|
 |
The Development of Fibre-optical Systems has caused a small Revolution in Chemical Analysis. The
Technology makes it possible to carry out Photometric Measurements not only under Laboratory Conditions
with cells, but through the Development of Fibre-optical Probes, Analysis has moved directly to the Process
Measurements. Continuous measurements can be made in situ without sampling. This allows for better
Control of ongoing processes with much less Effort.
용도 (Applications)
* Determination of Concentration (Quantitative Analysis)
* Determination of Colour
* Measurement of Turbidity
* Identification (Qualitative Analysis)
특징 (Features)
* 안정성 (safety) : Safe Measurement of Poisonous and Dangerous Substances as there is no need to
Handle the Sample
* 비파괴성 (Non-destructive) : The Product can be measured safely without Destruction or Danger of
Modification. The Effort involved in reaching just the right Temperature beforehand for Example thus
becomes superfluous.
* 경제성 (Economic) : Saves valuable Product, as Laboratory Samples usually have to be thrown away.
* 신속성 (Fast) : Measurement of Samples without delay as Transportation is not necessary. Measurement
results for Purposes of Regulation can be made available in Real Time (Online Process Control)
* 비용 절약 (Reduced Costs) : Reduction of Costs involved in Sampling and Analysis.
사용 방법 및 구성 (Connection to Spectrophotometer)
* Immersion probe는 2가지의 Fibre-optic 케이블로 구성
* SMA Coupler를 통한 사용
: Fibre-optic 케이블의 끝부분은 일반적으로 SMA 커넥터가 연결되어 있고 Spectrophotometer의 통신 소켓에 연결된다. 긴 길이가 필요한
경우,SMA Coupler를 이용하여 쉽게 연장할 수도 있다.
* 일반 Cell 대신 Fibre-optic Cable interface를 사용
: SMA Connector가 없는 Spectrophotometer의 경우에는 Hellma Interface와 같이 조절 랜즈를 가지고 있는 Fibre-optic 케이블을 이용할 수
있다. Fibre-optic Cable Interface는 10㎜ Light Path를 가진 일반 Standard Cell 과 외부 크기가 같아서 Spectrophotometer의 Cell Holder에 장착
하여 사용할 수 있다.

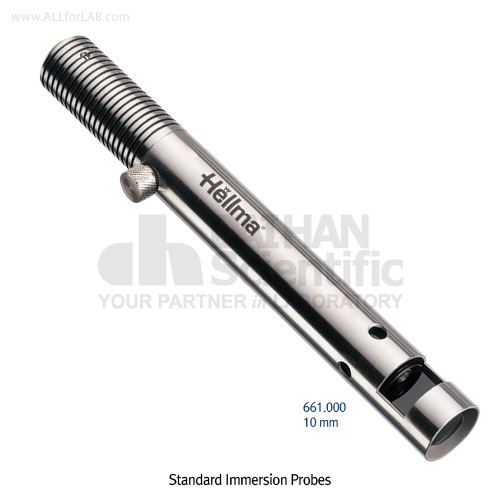

Standard Immersion Probes, 기본형 프로브
* Ideally suited to Laboratory Measurements
* As with Conventional Cell Measurements, the Collimated Light Beam passes through the Solution only once
* The Use of a Prism in Very Low Values for Stray Light

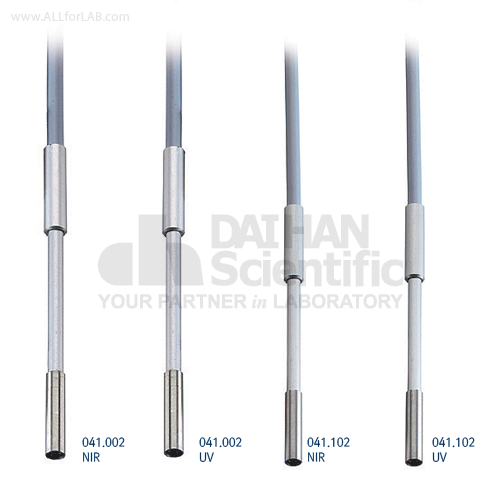

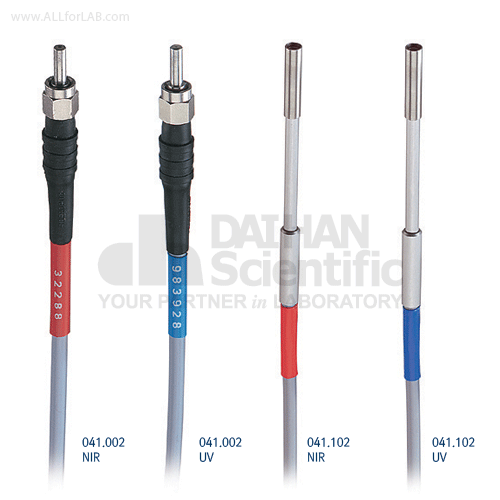

Standard Fibre-optic Cables
Fibre-optic Cable Interface
|
 |
|
|
|
