* Strong, Reliable, Silent
* Easy Sieving Process
The incorporation of nine leaf springs produces a tri-dimensional movement which permits a total use of the
whole surface of the sieve, and the sieving action only causes a minimum blinding of the sieving surface.
* 3차원(3-D : Vertical / Amplitude / Rotating) 입체 운동의 전자기식 시브 Shaker로 강력, 조용하며 작동이 용이.
* 건식 및 습식 분체(Dry & Wet - sieving)에 모두 적용. 단, 습식 분체용 Kit은 별도.
* 각 모델별로 기본적으로 사용되는 시브는 Φ200/203㎜이며, Φ100/150㎜ 시브를 사용시
Round Supporting Plate(round plate)와 Top Clamp Adapted for Φ100/150㎜가 필요함. (가격조회요함)
* 철저한 품질관리 : Serial No. 및 CE 인증
* Φ250 & 300㎜ Shaker 주문 제작 가능(가격조회요함)
* 나무상자에 포장.

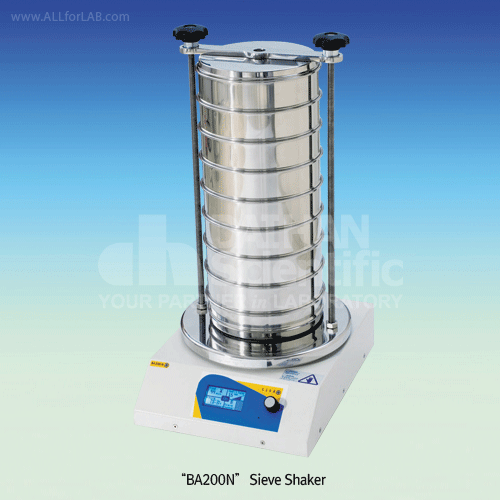

Digital기본형 전자기 시브 Shaker, “BA200N ”, Φ100 ~ 203 mm 시브용
* 제어 시스템 : 진폭(Amplitude) - 전위차계에 의한 Control
시간(Time) - Mechanical Timer with countdown and switch (1 ~ 99 분)
* 용량 : h50㎜ 시브 8개, h25㎜ 시브 16개까지 사용.
* Relative Humidity : 10~85%
* Dimensions : w400×d310×d95㎜
* Net weight : 27kg(without sieves)
* Voltage : 220V, 50/60Hz
CE.BA200N Electromagnetic Sieve Shaker, Φ200/203㎜ sieves용
Program / Digital 전자기식 시브 Shaker

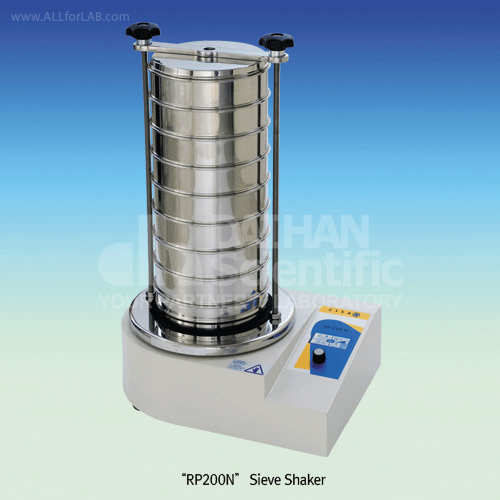

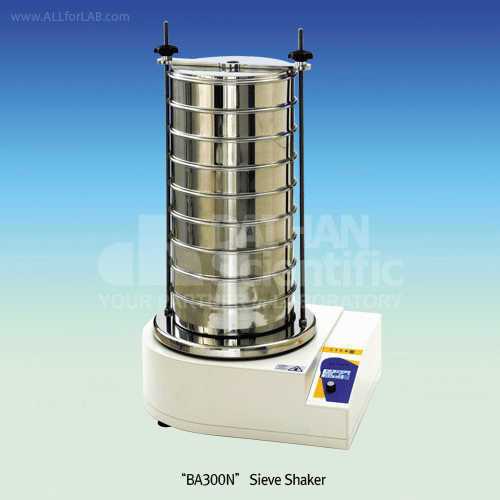

“BA300N”: Φ200 ~ 300㎜ 시브용 / “RP200N”: Φ200/203㎜ 시브용
* BA300N: Specially Ideal for Industrial of Acids, Works of Civil Engineering and Minerals.
* RP200N: Specially Ideal for Chemical and Pharmaceutical Laboratories and all the fields that
require the Analysis of Granulometric of Precision.
* 3-D Movement, No Maintenance
* Recommend for substance of density ≥0.8 gr/cm3
* Suitable for Both Dry and Wet Sieving, by Adapting the special kit.
* Induced Movement Using an Electromagnet, Combining an Orbital Displacement with a vertical one.
* Includes the system“ CISA-PRESS”with a closing system of the column of sieves with fixtures bars,
stainless steel top clamp and release fixtures.
* Absorption of vibrating system.
* RP200N : Capacity up to 8 sieves of 50㎜ height or 15 sieves of 25㎜ height.
* BA300N : Capacity up to 8 sieve of Φ300, 80㎜ Feight or 8 sieve of Φ20/203, 40㎜ height
CE.BA300N Digital Sieve Shaker, BA300N, Φ200 ~ 300㎜ sieves용
CE.RP200N Digital Sieve Shaker, RP200N, Φ200 / 203㎜ sieves용
Accessories for Sieve Shaker: RP-08 / RP-10 / RP-20
CE.FIT.KIT Spare Top Sieving Clamp, for Φ203㎜, stainless steel
CE.1000003 Optional Wet sieving Kit(cover/pan) for Φ200/203㎜
