고진공 Glass 콕크, DIN/ISO
High Vacuum Stopcocks, Glass Hollow -plug |
|
가격 : 견적가
제조사 : WITEG
모델선택 : 총 (20)개의 모델이 등록되어 있습니다.
|
|
|
 |
* DURAN(R) Borosilicate glass α3.3 <특급유리>
* 용도 : 초자 진공-Line / Pilot-plant 제작용에 이상적임
* 정밀 Hollow -plug로 표준화 되었으며, 공통 Plug 교체형임.

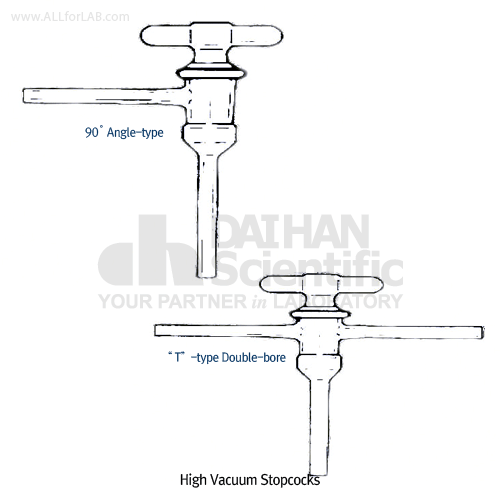

(1) 90。Angle-type, 90도각 타입
WI.0270002 Stopcock, Vacu90。, Bore 2.5 mm, 14.5/29, Arm od 9 mm
WI.0270004 Stopcock, Vacu90。, Bore 4.0 mm, 18.8/39, Arm od 10 mm
WI.0270006 Stopcock, Vacu90。, Bore 6.3 mm, 21.5/45, Arm od 13 mm
WI.0270010 Stopcock, Vacu90。, Bore 10 mm, 29/56, Arm od 18 mm
WI.0270012 Stopcock, Vacu90。, Bore 12 mm, 34.5/56, Arm od 20 mm
(2“) T”-type Double-bore“, T”타입, 2 Bore 3 방
WI.0272002 Stopcock, Vacu “T”, Bore 2.5 mm, 14.5/29, Arm od 9 mm
WI.0272004 Stopcock, Vacu “T”, Bore 4.0 mm, 18.8/39, Arm od 10 mm
WI.0272006 Stopcock, Vacu “T”, Bore 6.0 mm, 21.5/45, Arm od 13 mm
WI.0272010 Stopcock, Vacu “T”, Bore 10 mm, 29/56, Arm od 18 mm
WI.0272012 Stopcock, Vacu “T”, Bore 12 mm, 34.5/56, Arm od 20 mm

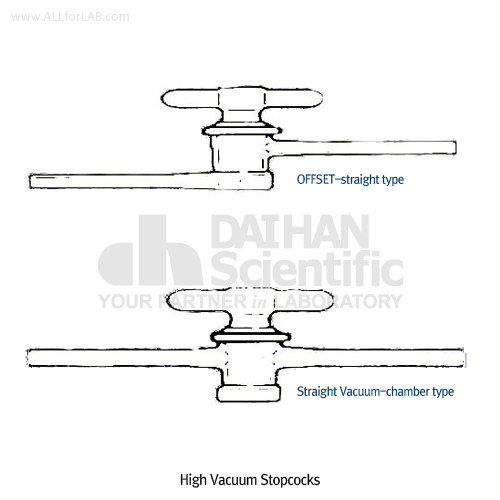

(3) OFFSET-straight type, 오프셋트1-way 형
WI.0274002 Stopcock, Vacu O/S, Bore 2.5 mm, 14.5/29, Arm od 9 mm
WI.0274004 Stopcock, Vacu O/S, Bore 4.0 mm, 18.8/39, Arm od 10 mm
WI.0274006 Stopcock, Vacu O/S, Bore 6.0 mm, 21.5/45, Arm od 13 mm
WI.0274010 Stopcock, Vacu O/S, Bore 10 mm, 29/56, Arm od 18 mm
WI.0274012 Stopcock, Vacu O/S, Bore 12 mm, 34.5/56, Arm od 20 mm
(4) Straight Vacuum-chamber type, 일자형 진공챔바 타입
WI.0276002 Stopcock, SCHIFF, Bore 2.5 mm, 14.5/29, Arm od 9 mm
WI.0276004 Stopcock, SCHIFF, Bore 4.0 mm, 18.8/39, Arm od 10 mm
WI.0276006 Stopcock, SCHIFF, Bore 6.0 mm, 21.5/45, Arm od 13 mm
WI.0276010 Stopcock, SCHIFF, Bore 10 mm, 29/56, Arm od 18 mm
WI.0276012 Stopcock, SCHIFF, Bore 12 mm, 34.5/56, Arm od 20 mm |
 |
|
|
|
