 폴리쉬드 볼 조인트와 소켓, DIN/ISO
Polished Spherical Joints, -Ball & -Socket, Non-rode |
|
가격 : 견적가
제조사 : SCHOTT-MEDICA
모델선택 : 총 (34)개의 모델이 등록되어 있습니다.
|
|
|
 |
Spherical joints, Polished, Non-rode
* DURAN(R) Borosilicate glass α3.3 <특급유리>
* 유리 용융 접합 가공시 모든 Borosilicate glass α3.3 과 동질작업됨.

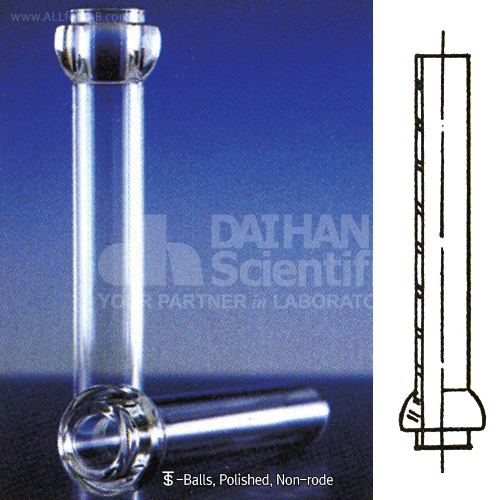

(4) -Balls, Polished, Non-rode
SM.28632200 Joint, Ball, 13 / 5, Tube od. 8 ×Thick 1.5 mm
SM.28632360 Joint, Ball, 19 / 9, Tube od.12×Thick 1.5 mm
SM.28632520 Joint, Ball, 29 / 15, Tube od.18×Thick 2.5 mm
SM.28632640 Joint, Ball, 35 / 20, Tube od.24×Thick 2.5 mm
SM.28632800 Joint, Ball, 41 / 25, Tube od.28×Thick 2.8 mm
SM.28632980 Joint, Ball, 64 / 40, Tube od.48×Thick 3.2 mm

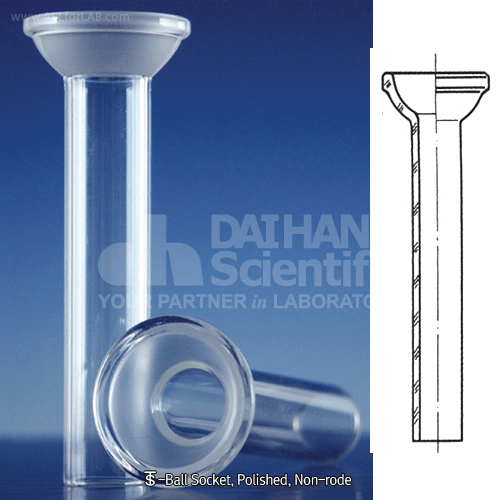

(5) -Ball Socket, Polished, Non-rode
SM.28632140 Joint, Socket, 13 / 5, Tube od. 8 ×Thick 1.5 mm
SM.28632300 Joint, Socket, 19 / 9, Tube od.13×Thick 1.5 mm
SM.28632460 Joint, Socket, 29 / 15, Tube od.19×Thick 2.5 mm
SM.28632580 Joint, Socket, 35 / 20, Tube od.24×Thick 2.5 mm
SM.28632740 Joint, Socket, 41 / 25, Tube od.28×Thick 2.8 mm
SM.28632940 Joint, Socket, 64 / 40, Tube od.48×Thick 3.2 mm

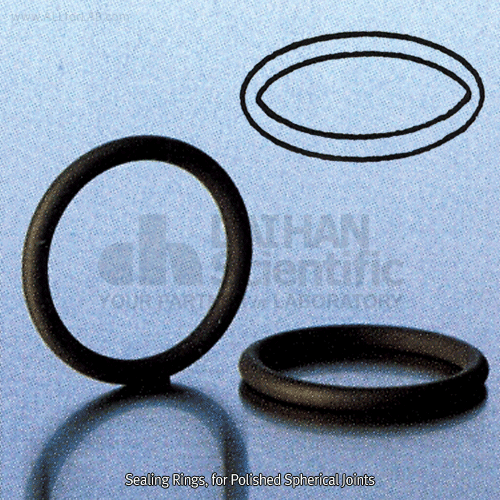

(6) Sealing Rings, for Polished Spherical Joints
SM.1155355 Sealing Ring, 13
SM.1155356 Sealing Ring, 19
SM.1152556 Sealing Ring, 29
SM.28622300 Sealing Ring, 35
SM.28622340 Sealing Ring, 41
SM.1155357 Sealing Ring, 64 |
 |
|
|
|
