RODAVISS(R) 표준 조인트, cap-tight-connection system
RODAVISS(R) Standard taper -Joint units for Special Screw |
|
가격 : 견적가
제조사 : SCHOTT-MEDICA
모델선택 : 총 (72)개의 모델이 등록되어 있습니다.
|
|
|
 |
Applied to vacuum-line and can be used as closure screw cap for RODAVISS sockets.
* 구조
- RODAVISS(R) -Cone & -Socket : DURAN(R) Borosilicate glass α3.3 <특급유리>
- RODAVISS(R) Connection Screwcap-set(내열/내약품성):
Opentop Screwcap(연결캡) + Loosing ring(안전가대) + Viton O-ring Seals
* 용도
- Glass -Cone/-Socket Joint연결에 특수 Screwcap구조의 안전 밀폐(Safety-tight)연결 System을 추가한 것임.
- 진공-라인(vacuum-Line)용에 적합함.
- 부가적으로 RODAVISS-Socket용 Closure-Screwcap도 사용됨 : RODAVISS-연결용이 아닌, RODAVISS-Socket(외피)가 붙어 있는
용기(Vessels)나 기타 장치의 Sockets(입구)를 막아 주는 Closed Top Screwcap(캡 상부가 막힌것)도 사용됨.

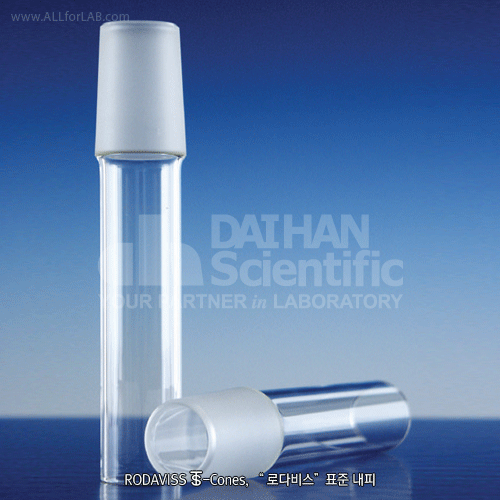

(1) RODAVISS VISS -Cones, “ 로다비스”표준 내피, 정밀형 / DIN
SM.28615300 Joint. RODAVISS, Cone, 14/23,Tube od13×Thick 1.5 mm
SM.28615510 Joint. RODAVISS, Cone, 19/26,Tube od17×Thick 1.8 mm
SM.28615610 Joint. RODAVISS, Cone, 24/29,Tube od22×Thick 2.0 mm
SM.28615690 Joint. RODAVISS, Cone, 29/32,Tube od26×Thick 2.0 mm
SM.28615930 Joint. RODAVISS, Cone, 34/35,Tube od30×Thick 2.0 mm
SM.28616010 Joint. RODAVISS, Cone, 45/40,Tube od40×Thick 2.3 mm

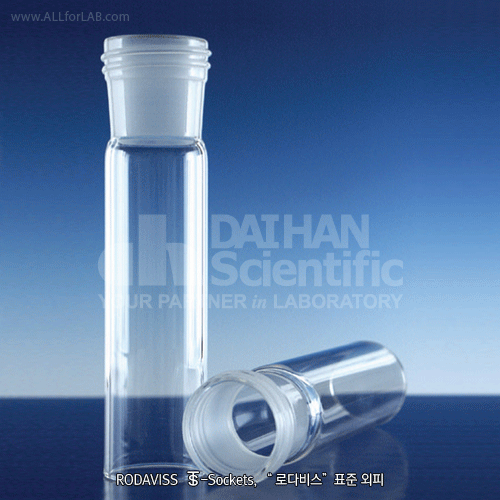

(2) RODAVISS -Sockets, “ 로다비스”표준 외피, 정밀형/DIN
SM.28652500 Joint. RODAVISS, Socket, 14/23,Tube od17×Thick 1.8 mm
SM.28653650 Joint. RODAVISS, Socket, 19/26,Tube od22×Thick 1.8 mm
SM.28654340 Joint. RODAVISS, Socket, 24/29,Tube od28×Thick 2.0 mm
SM.28654960 Joint. RODAVISS, Socket, 29/32,Tube od33×Thick 2.0 mm
SM.28655950 Joint. RODAVISS, Socket, 34/35,Tube od40×Thick 2.3 mm
SM.28656250 Joint. RODAVISS, Socket, 45/40,Tube od50×Thick 2.5 mm

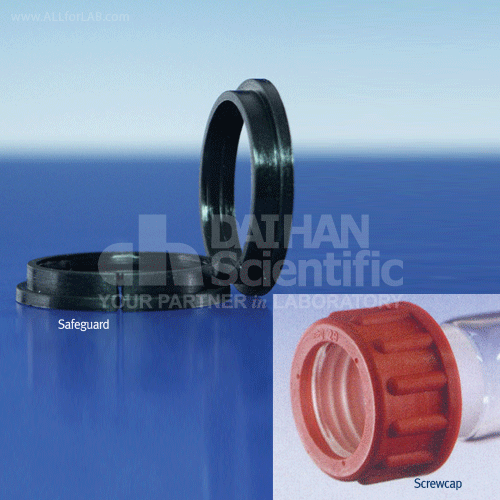

(3) RODAVISS Safeguard, “ 로다비스”안전보조연결링
SM.28621640 Safeguard, RODAVISS, for 14
SM.28621690 Safeguard, RODAVISS, for 19
SM.28621710 Safeguard, RODAVISS, for 24
SM.28621660 Safeguard, RODAVISS, for 29
SM.28621730 Safeguard, RODAVISS, for 34
SM.28621670 Safeguard, RODAVISS, for 45
(4) RODAVISS Screwcap, “ 로다비스”연결캡
SM.28621500 Screwcap, RODAVISS with aperture, for 14
SM.28621520 Screwcap, RODAVISS with aperture, for 19
SM.28621530 Screwcap, RODAVISS with aperture, for 24
SM.28621540 Screwcap, RODAVISS with aperture, for 29
SM.28621550 Screwcap, RODAVISS with aperture, for 34
SM.28621570 Screwcap, RODAVISS with aperture, for 45

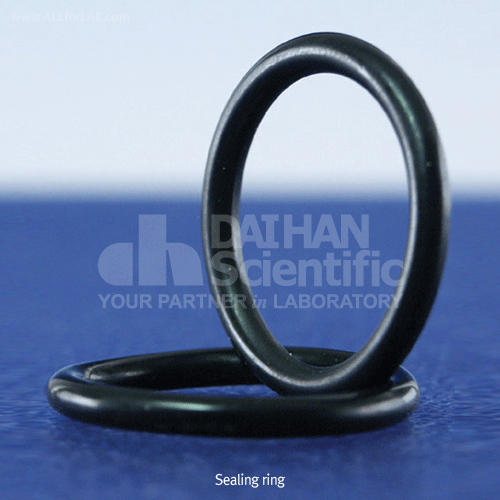

(5) RODAVISS Sealing ring, “ 로다비스”밀착 씰링용 링
SM.28621680 Sealing ring, RODAVISS made of nitrile, for 14
SM.28621700 Sealing ring, RODAVISS made of nitrile, for 19
SM.28621720 Sealing ring, RODAVISS made of nitrile, for 24
SM.28621740 Sealing ring, RODAVISS made of nitrile, for 29
SM.28621750 Sealing ring, RODAVISS made of nitrile, for 34
SM.28621770 Sealing ring, RODAVISS made of nitrile, for 45
6) RODAVISS Closure-Screwcap, “ 로다비스”막는캡 : 경우에 따라 사용
* 용도 : 본 Cap은 연결용이 아닌 RODAVISS-Socket(외피)를 막는 Screwcap(Closed top)으로서, PTFE Sealing gasket가 포함됨.
SM.28621420 Cap, RODAVISS, Closed, for 14
SM.28621430 Cap, RODAVISS, Closed, for 19
SM.2862144 |
 |
|
|
|
