Modular Design Allows You to Customize for Your Applications.

용도 (Applications)
* Chemical or Bio-Reaction Processes in Vacuum-Line
* Dispersion, Distillation, Evaporation, Homogenization & Mixing Processes at
Laboratory & Production-Scales.
* 적용분야의 예 (Application Examples).
   - Manufactuing of Cremes, Lotions, Emulsions, and Liposome Preparations
in the Pharmaceutical and Cosmetic Sector
   - Mixing of Solids such as Calcium Carbonate, Talc, Titanium Oxide, etc.
into Liquid Polymers
   - Mixing of Additives and Solid Polymer Compounds into Mineral Oils
   - Grinding and Disintegrating of Solids and Fibers in Liquids and Polymers

주요 특징 (Features)
* 다용도, 기능추가형 Modular System:
   Homogenizer, Vacuum Pump & Controller, Heating Bath or Mantle 등 다양한
   기능의 기구 등을 추가 및 교체 할 수 있음.
* Wide-Range Vessels and Convenience:
   - Single or Double Walled Glass Vessels, 0.5~15 Lit.
   - With or Without Out-Let Valve at Vessel Bottom
   - General or Vacuum-Purpose Vessels.
* "NW" Standardized Flat-Flange System, "NW 100~200":
   Provides Customers with a Comprehensive Range of Accessories and
   Replacement Parts.
* Convenient O-Ring GROOVE in the Vessle's Flange:
   Ideal for Vacuum or Pressure Applications, and Safe Mounting of the Vessel
   with the Associated Lid(Cover)
* Screwthread Necks of the Lid Available:
   On request instead of standard taper joints, you can choose Screwthread necks or
   Spherical joints.
* Fully Digital Feedback / Microprocessor Controlled Agitator:
   LCD Display, Power Bar Graph & Status, Over-Load/-Heat Protection Functions.
* Easy Installation, Removable Frame / Stand.

상세 규격 (Specifications)
※ Note!
   You can see the Details at the Following Consist Components (다음에 언급되는 각 구성품란을 참조)!

주문 (Ordering Information)
※ Note!
   You Can Choose the Consist Components According to Your Appications(용도에 따라 필요 구성품을 선택)!

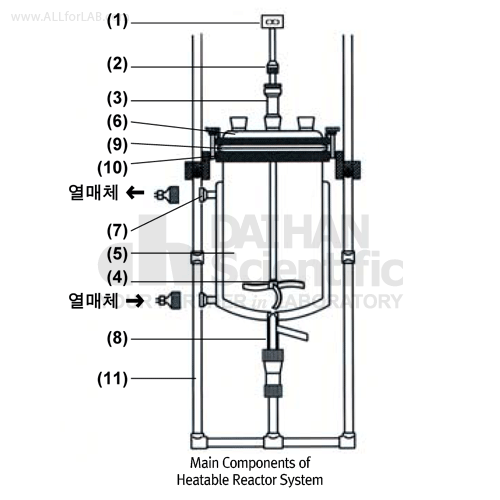

Main Components Example of the Modular Reactor System
반응장치(기능추가식)의 주요 구성품의 실예
(1) Agitator Unit & Controls
(2) Flexible Coupling for Safety Stirring
(3) Stirrer Guide / Seals for Vacuum / Pressure
(4) Impellers & Shafts
(5) Reaction Vessels
(6) Functional Lids
(7) Safety Thermal Connection for Double Walled Vessels.
(8) Discharge (Bottom) Valve
(9) Sealing Ring / Gaskets
(10) Clamps & Supporting Device
(11) Reactor Supporting Frame

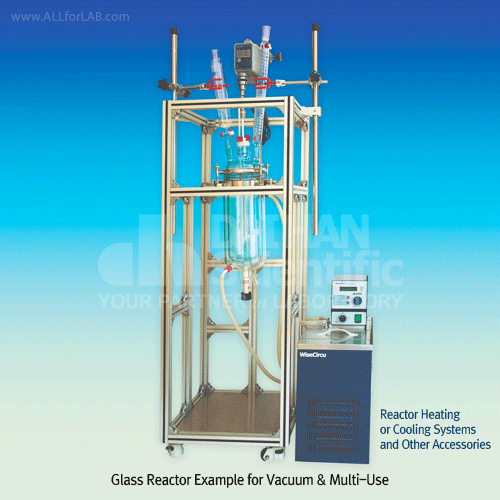

(12) Reactor Heating or Cooling Systems and Other Accessories

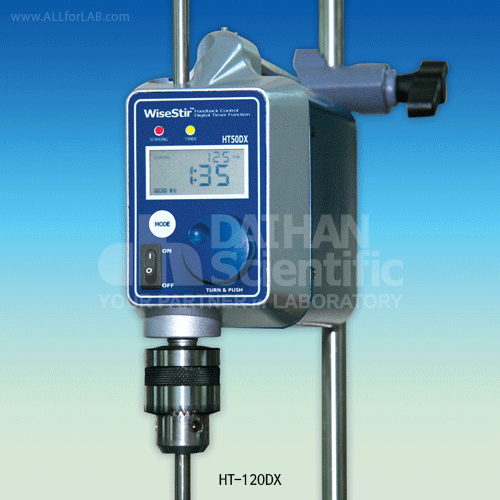

(1) Agitator“ DAIHAN”WiseStir^(R)HT-DX
Digital Feedback-Controlled Stirrer, for High-Torque Application
디지털 피드백 정속 교반기, 강력교반, up to 60 Lit., 50 ~ 1,000 rpm

용도 (Applications)
* Ideal for Stirring Material of Viscosities Ranging from Light Watery Solutions
High-Viscosity Fluids
* Digital Feedback Control: Steady and Constant Stirring Speed against
the viscosity change of sample during reaction.
* Extremely convenient user interface by jog-shuttle switch
(Multi -functional turning knob: Turning + Push)

주요 특징 (Features)
* 중/고점도용 다기능 실험용 교반기.
* Feedback Control (정속제어)의 구현으로 샘플의 점도가 변화해도 설정한 회전속도가
일정하게 유지.
* DAIHAN 조절기만의 특징인 조그셔틀(Turning+Push) 채용으로 조절 편이성 극대화.
* 모터의 과부하, 과열 등의 위험에서 장비를 보호하는 보호 장치 내장.
* 3.5:1 Worm Gear의 사용으로 강력교반 구현.
* Smooth Start 기능을 채용하여 갑작스러운 교반에 의한 용액 넘침과 장비 손상 예방
