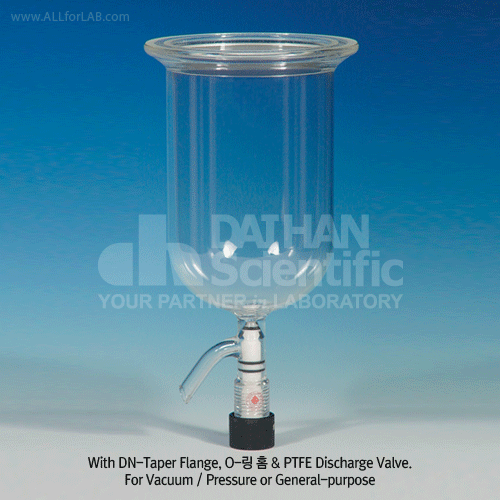

배출 밸브식 베셀-DURAN(R) Glass, 진공/압력용, 국제 표준 DN-Flange / O-링 홈, to 1.5 bar, to 20 Lit.
Reaction Vessels with Discharge Valve, For Vacuum / Pressure-use |
|
가격 : 견적가
제조사 : SCHOTT-DURAN
모델선택 : 총 (26)개의 모델이 등록되어 있습니다.
|
|
|
 |
※ Note: ① DURAN(R) Glass 진공/압력용 Vessels의 자세한 특징/규격은 Glass Vessels란 맨앞에서 설명된
“2×Application Models”란을 참조!
② Vessels의 급냉 or 급가열은 위험!
두꺼운 유리벽의 급격한 열팽창계수의 큰차이는 용기의 파손을 초래할 수 있음.
③ 이하 Vessels의 Body 규격은 Flange size(od×h) 및 배출 Valve등을 제외한 수치임!

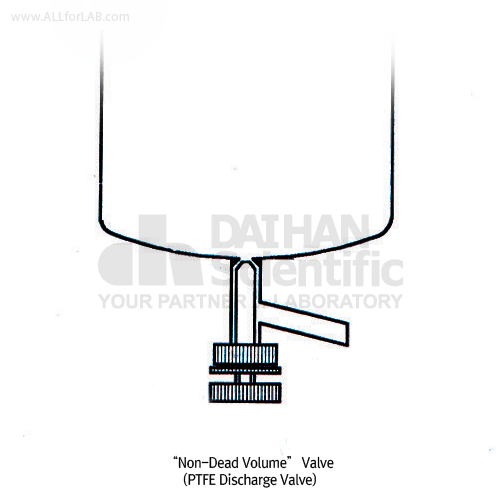

* PTFE Bottom Discharge Valve 바닥 배출 밸브식, 내약품 / 내열성, -50 +250℃
“DEAD VOLUME-Free!” PTFE Spindle Valve with the Spindle Being Pressed in While Turning.
* With 5~9mm Thick-Wall, DN-표준 Flange(45。Taper) & O-ring Groove.
With DN 100 Flange / O-링 홈 & 5mm Thick-Wall, to 1.5 bar, 0.5~1 Lit.
DH.RE01040 Vessel, 0.5 Lit., id10×h8 cm body, Valve bore 5mm
DH.RE01041 Vessel, 1 Lit., id10×h15 cm body, Valve bore 5mm
With DN 120 Flange / O-링 홈 & 5mm Thick-Wall, to 1.3 bar, 1~5 Lit.
DH.RE01042 Vessel, 1 Lit., id12×h10 cm body, Valve bore 10mm
DH.RE01043 Vessel, 2 Lit., id12×h19 cm body, Valve bore 10mm
DH.RE01044 Vessel, 3 Lit., id12×h28 cm body, Valve bore 10mm
DH.RE01045 Vessel, 5 Lit., id12×h46 cm body, Valve bore 10mm
With DN 150 Flange / O-링 홈 & 5mm Thick-Wall, to 1.0 bar, 5~7 Lit.
DH.RE01046 Vessel, 5 Lit., id15×h29 cm body, Valve bore 10mm
DH.RE01047 Vessel, 7 Lit., id15×h44 cm body, Valve bore 10mm
With DN 200 Flange / O-링 홈 & 7mm Thick-Wall, to 0.5 bar, 7~15 Lit.
DH.RE01048 Vessel, 7 Lit., id20.1×h25 cm body, Valve bore 15mm
DH.RE01049 Vessel, 10 Lit., id20.1×h33 cm body, Valve bore 15mm
DH.RE01050 Vessel, 15 Lit., id20.1×h33 cm body, Valve bore 15mm
With Bottle-type: DN 200 Flange / O-링 홈 & 9mm Thick-Wall, to 0.5 bar, 10~20 Lit.
Made of DURAN(R) Vacuum Filtering Bottles.
DH.RE01051 Vessel, 10 Lit., od24×h31 cm body, Valve bore 15mm
DH.RE01052 Vessel, 15 Lit., od26×h38 cm body, Valve bore 15mm
DH.RE01053 Vessel, 20 Lit., od29×h41 cm body, Valve bore 15mm

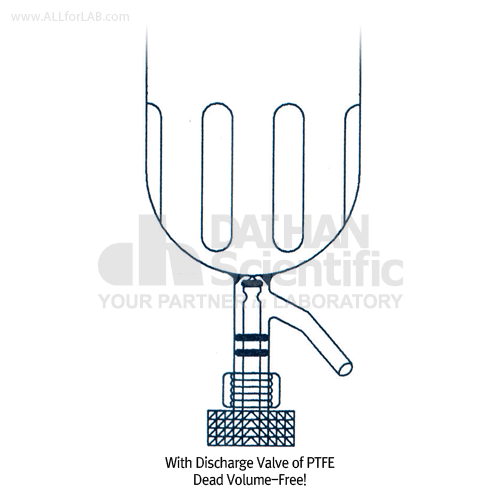

Baffle-type Vessels, with DN-Flange & O-ring Groove, 1~10 Lit.
배플형 베셀-DURAN(R) Glass, 진공/압력용, O-링 홈, For Vacuum / Pressure, 0.5~1.3 bar
* Vessel Wall에 Design된 Baffles는 Agitation 효과를 증진시킴.
* Thick-Wall: 5mm wall(1~5 Lit.), 7mm Wall(7 & 10 Lit.)
Without Discharge Valve, with 5~7mm Thick-Wall, 1~10 Lit.
DH.RE01092 Vessel, 1 Lit., DN 120, id12×h11 cm body, 1.3 bar
DH.RE01093 Vessel, 2 Lit., DN 120, id12×h19 cm body, 1.3 bar
DH.RE01094 Vessel, 3 Lit., DN 120, id12×h28 cm body, 1.3 bar
DH.RE01095 Vessel, 5 Lit., DN 150, id15×h29 cm body, 1.0 bar
DH.RE01097 Vessel, 7 Lit., DN 200, id20.1×h25 cm body, 0.5 bar
DH.RE01098 Vessel, 10 Lit., DN 200, id20.1×h33 cm body, 0.5 bar
With PTFE Discharge Valve & 5~7mm Thick-Wall, 1~10 Lit.
DH.RE01102 Vessel, 1 Lit., DN 120, 10mm valve bore, id12×h11 cm body
DH.RE01103 Vessel, 2 Lit., DN 120, 10mm valve bore, id12×h19 cm body
DH.RE01104 Vessel, 3 Lit., DN 120, 10mm valve bore, id12×h28 cm body
DH.RE01105 Vessel, 5 Lit., DN 150, 10 |
 |
|
|
|
