농축기 by Gas, and 디지털 농축 시스템 by Heated & Gas, Well-plates용
Evaporator & Digital Evaporator System, for 96- or 384-well plates |
|
가격 : 견적가
제조사 : GLAS-COL
모델선택 : 총 (6)개의 모델이 등록되어 있습니다.
|
|
|
 |
* Low cost solution for the concentration of microplate extractions and
reactions.
* Each Stainless Steel Needle delivers an equal flow of nitrogen or other gases.
* Gently speeds evaporation of excess liquid.
A fine needle valve controls the total flow to the equalizer manifold that gives equal gas
flow to each well. Each well has consistent evaporation. Needle height is easily adjustable to
enable most sizes and capacities of microplates.
특징 (Features)
* Evaporator & Digital Evaporator System 공통사항
* Microplate 추출, 반응의 농축에 소량의 시료가 쓰여 경제적임. �니들의 높이 조절가능.
* 스테인레스로 된 각 니들(Needle)이 일정한 양의 질소(N2)가스나 기타가스를 공급함.
* 정밀한 니들 밸브가 각 Well로 들어가는 가스의 흐름을 일정하게 조절함 : Adjustable
* Digital Evaporator System :
“Evaporator”에 Digital PID Heating Control (to 100 ℃) 기능 추가.
* 온도 조절기(Temperature Control) : Digital Read Out. User Friendly Interface.
규격 (Specifications)
* Evaporator & Digital Evaporator System의 공통규격
- Gas Flow : 1 to 100 ml/ Needle
- Max. Pressure : 20 Psi
- Body : Constructed of Nylon and can be sterilized by autoclaving.
- Valve : Nikel Plated Brass
- Tubing : 2 ft of Black 1/4”PE Tubing
* Evaporator 만의 차이점
- Size : w7”×d5.5”×h7.5”
- Weight : 5 lbs
* Digital Evaporator System 만의 차이점
- Size : Evap. - w7”×d5.5”×h7.5”, Control - w5.5”×d7.5”×h2.25”
- Weight : 8 lbs
- Display : 4-Digit LED, to 100 ℃
- Electrical : 2 A, 50 / 60 Hz, On-off Power Switch, Fuse Protection, 3-wire Cord / Plug.
- Control Type : PID Parameters w/ Auto Tune.
- Accuracy : ±0.25 % of Span
주문 (Ordering)

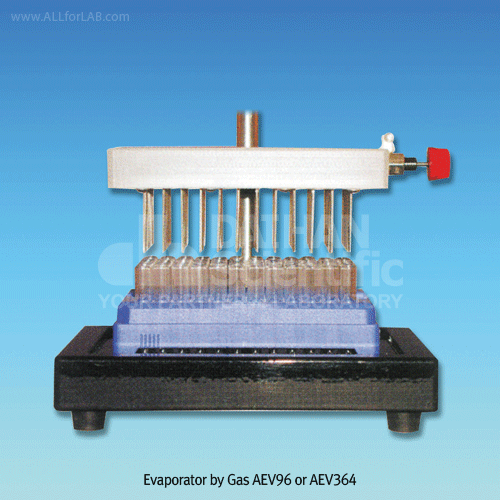

Evaporator / 농축기, by Gas flow
GC.099AEV96 Evaporator with Gas flow Needle (1~100ml), 96 Well Plates용
GC.099AEV384 Evaporator with Gas flow Needle (1~100ml), 384 Well Plates용

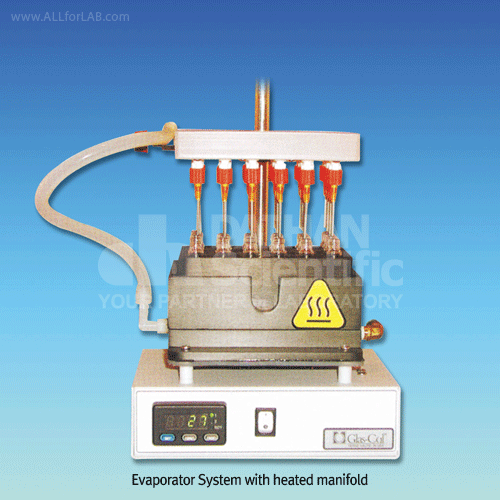

Evaporator System / 농축기 시스템 : Heating to 100℃ & Gas flow
GC.099AEV9624S Evaporator Heated System, 96 Well Plates, 240 V
GC.099AEV9624ST Evaporator Heated System, 96 Well Plates, 240 V, w/heated manifold
GC.099AEV38424S Evaporator Heated System, 384 Well Plates, 240 V
GC.099AEV38424ST Evaporator Heated System, 384 Well Plates, 240 V, w/heated manifold
※ 위 제품은 운임비 착불전용상품입니다. |
 |
|
|
|
