Digital Fuzzy Control, Superior Temperature & Vacuum Accuracy, 10~750 mmHg, up to 200¡É

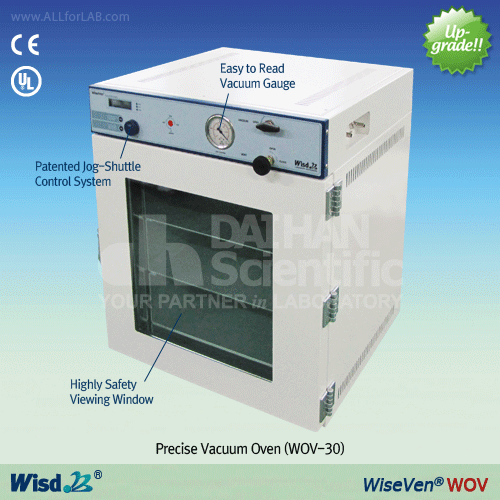

WiseVen(R)WOV Precise Vacuum Oven, Highly Safety Viewing Window, 30-/69-Lit. |
°¡°Ý : °ßÀû°¡
Á¦Á¶»ç : DAIHAN
¸ðµ¨¼±Åà : ÃÑ (2)°³ÀÇ ¸ðµ¨ÀÌ µî·ÏµÇ¾î ÀÖ½À´Ï´Ù.

|
|
|
 |
* Suitable for Drying, Baking, Conditioning, Curing, Out-Gassing Solids and Liquids, Vacuum Embedding, Moisture Testing, Plating and Aging Test * Very Easy and Convenient for Vacuuming and Venting, Easy to read Vacuum Gauge * Highly Safety Viewing Window (Tempered Safety Glass+ Polycarbonate Window) * Patented Jog-Shuttle Control System and Back-Light LCD Display * UL Certified * CE Certified * ¡°PL(Product Liability) Insurance¡± : One Hundred Million/Korean Won(£Ü) for Each of Human and an Object

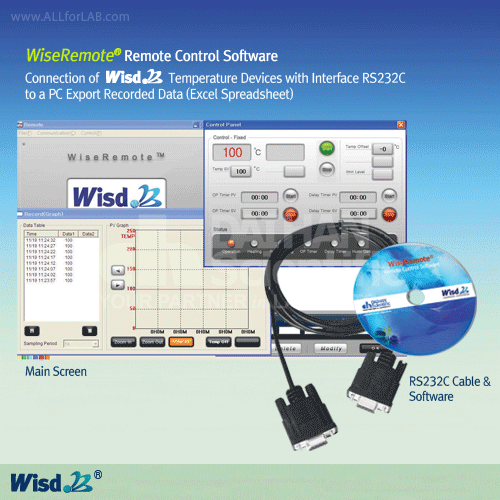

Application & Features * Suitable for Drying, Baking, Conditioning, Curing, Out-Gassing Solids and Liquids, Vacuum Embedding, Moisture Testing, Plating and Aging Test * Digital Fuzzy Control System Implementing Superior Temperature Accuracy * RS232C Interface for Remote Monitoring and Controlling with PC * Superior Uniformity and Stability * Very Easy and Convenient for Vacuuming and Venting, Easy to read Vacuum Gauge * High Quality Door Sealing : High Temperature Grade Silicone Molded Gasket * Highly Safety Viewing Window (Tempered Safety Glass+ Polycarbonate Window) * Over Temperature & Over Current Protection and Sensor Error Detection * Storage Function : Alarm & Timer * Locking Mode Supported for Experimental Safety (Input to Jog-Shuttle can be disabled) * Patented Jog-Shuttle Control System and Back-Light LCD Display * UL Certified * CE Certified * ¡°PL(Product Liability) Insurance¡± : One Hundred Million/Korean Won(£Ü) for Each of Human and an Object
Specification ¡Ø ÀÚ¼¼ÇÑ »çÇ×Àº PDFÆÄÀÏ ÂüÁ¶ÇϽñ⠹ٶø´Ï´Ù.
Ordering Information

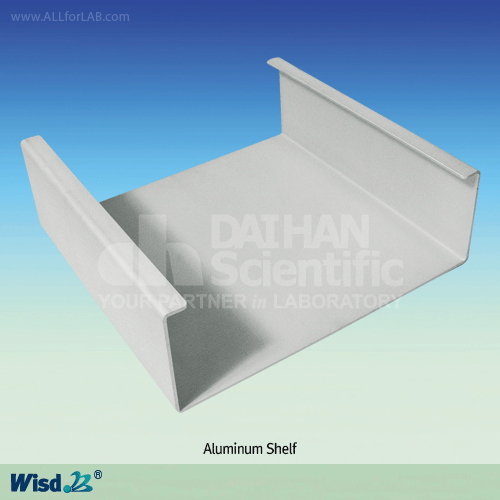

DH.WOV01030 Vacuum Oven, WOV-30, 30 Lit., Ambient +5¡É~200¡É DH.WOV01070 Vacuum Oven, WOV-70, 69 Lit., Ambient +5¡É~200¡É Spare Accessories DH.WOV11030 Shelf, Aluminum, OVS030, for WOV-30, w295¡¿d285¡¿h98mm DH.WOV11070 Shelf, Aluminum, OVS070, for WOV-70, w395¡¿d395¡¿h130mm Validation (IQ, OQ) Service DH.WOV31030 Validation Service(IQ, OQ), OVV030, for WOV-30 DH.WOV31070 Validation Service(IQ, OQ), OVV070, for WOV-70
¡Ø DAIHAN Recommendation : Combination of the Vacuum Oven(WOV) with the Cold Trap Bath and the Vacuum Pump
¡Ø À§ Á¦Ç°Àº ¿îÀÓºñ ÂøºÒÀü¿ë»óǰÀÔ´Ï´Ù. |  |  |
| |
|
 |
|
|
