진공여과장치 / 홀더, 유기용매에 적합. , ASTM/USP

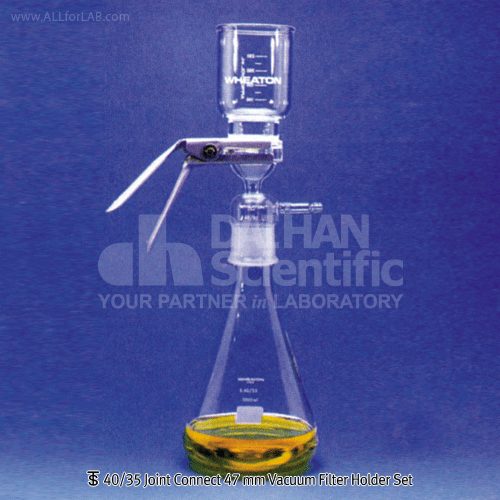

40/35 Joint Connect 47 mm Vacuum Filter Holder Set |
|
가격 : 견적가
제조사 : WHEATON
모델선택 : 총 (14)개의 모델이 등록되어 있습니다.
|
|
|
 |
Recommended for the routine filtration of organic solvents, corrosive liquids and for the removal of particulates from HPLC solvents. Manufactured from low extractable borosilicate glass.
* 유기 용매, HPLC용매, 부식성 약품 및 기본여과용
* Glass Joint로 여과홀더와 병(1 Lit. or 2 Lit.)이 연결되는 완전 Set로 공급
* 여과용량 : 기본은 300 ml & 500 ml이며, Funnel(Option)만의 교체에 의하여 100 ml 와 1000ml도 가능함.
* 2종류 : ? Fritted Glass (40~60 ㎛) Support Base Type
? Stainless-steel Support Screen (100 매쉬) Type

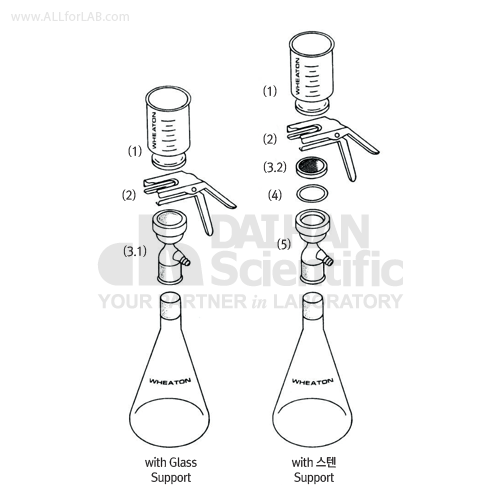

(a) With Φ47mm Fritted Glass Support Base (40~60㎛)
WH.419380 Complete Set with 300ml Funnel & 1 Lit. Flask
with 47mm Joint fritted Glass Support Base,
300ml Graduated Funnel, Anodized Aluminum Clamp,
1 Lit. Joint Flask
WH.419385.47 Complete Set with 500ml Funnel & 2 Lit. Flask
with 47mm Joint fritted Glass Support Base,
500ml Graduated Funnel, Anodized Aluminum Clamp,
2 Lit. Joint Flask
(b) With Φ47mm Stainless Steel Support with 100 mash Screen
WH.419390 Complete Set with 300ml Funnel & 1 Lit. Flask
with 47mm Stainless Steel Support with 100 mash Screen,
Glass Support Base, 300ml Graduated Funnel,
Teflon Support Screen Gasket, Anodized Aluminum Clamp,
1 Lit. Joint Flask
Optional Spare Accessories
WH.419350 (1) Φ47 mm Glass Funnel 눈금, 300 ml
WH.419410 (1) Φ47 mm Glass Funnel 눈금, 100 ml
WH.419415 (1) Φ47 mm Glass Funnel 눈금, 500 ml
WH.419420 (1) Φ47 mm Glass Funnel 눈금, 1000 ml
WH.419354 (2) Φ47 mm Aluminum Clamp
WH.419382 (3.1) Φ47 mm Fritted support Base 40/35 <419380용>
WH.419364 (3.2) Φ47 mm 스텐 Support Screen (100 매쉬) <419390용>
WH.419392 (5) Φ47 mm Glass Base Ts Socket, 스텐 Sup.<419390용>
WH.419366 (4) Φ47 mm PTFE Gasket, 6 pcs/pk <419390용>
G2.GL221321 40/38 Joint DURAN(R) Filter Flask 1000 ml
G2.GL221322 40/38 Joint DURAN(R) Filter Flask 2000 ml |
 |
|
|
|
