 광역 게이지, Measurement Range : 1.0×105 to 1.0×10-7Pa

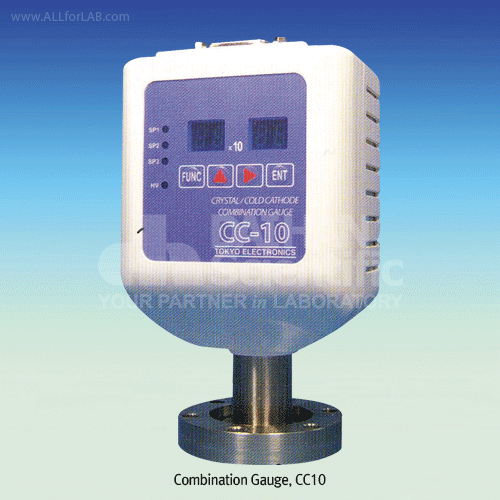

Combination Gauge, Crystal/Cold Cathode, CC10-series |
|
가격 : 견적가
제조사 : Ulvac
모델선택 : 총 (1)개의 모델이 등록되어 있습니다.
|
|
|
 |
Features / 특징
* Seamless measurement from atmospheric
* Analog Output : 0-10VDC, log / combined linear characteristics
* RS485 digital communications
* Three Adjustable Set Points
* Power with DC 22~26[V] 8[W]Max
Specifications / 규격
* Sensor Technology : Crystal / Double Inverted Magnetron Cold Cathode
* Display : Blue-Green Segmented LED
* Set Points : Three (3) independent set points, adjustable, Contact rating 50VDC 0.12A
* Digital Interface : RS485 via d-sub 15 pin female
* Vacuum Connection : NW25 or 2.75CF
* Operating Voltage : 22-26VDC
* Operating Temperature : Max, 50 degrees C
* Bake Temperature : Max, 100 degrees C
주문 (Ordering)
T2.CC10NW Gauge, Combination, 94×70.8×135.5㎜, 840g |
 |
|
|
|
